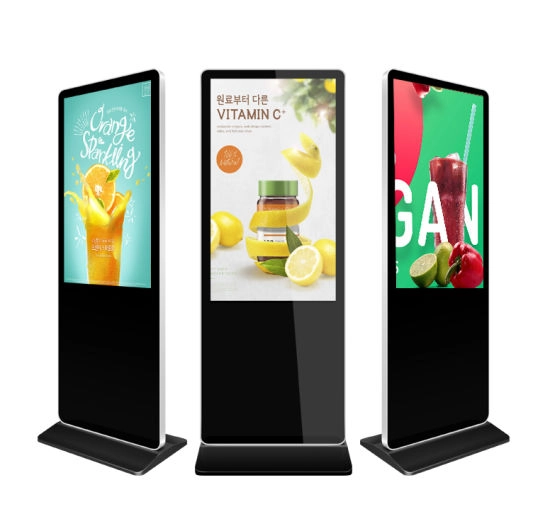

SBA027 43-Inch Digital Kiosk Signage(Touch/Non-Touch)

The Suitch On SBA027 43-Inch Digital Kiosk Signage is a robust and versatile display designed to provide interactive and high-impact visual experiences in retail, hospitality, corporate, and public spaces. Its modern kiosk design ensures both aesthetic appeal and functional usability, making it ideal for interactive promotions, wayfinding, and information kiosks.

With a Full HD LED panel, 10,000:1 contrast ratio, and 16:9 aspect ratio, the SBA027 delivers vibrant, crisp visuals that capture attention instantly. The MS Iron frame and 5mm toughened glass provide durability and safety for long-term use in busy environments.

Available in both Touch and Non-Touch variants, this signage supports smooth content playback via a 1GB RAM + 4GB storage Android system. Built-in speakers deliver clear audio for multimedia content, making the SBA027 a complete and reliable solution for modern digital signage needs.

⚙️ Technical Information

Model: SBA027
Brand: Suitch On
Product Type: Digital Kiosk Signage (Touch/Non-Touch)

🖥️ Display Specifications

  • Display Size: 43 Inches
  • Display Type: LED Backlit Panel
  • Resolution: 1920 × 1080 (Full HD)
  • Contrast Ratio: 10,000:1
  • Aspect Ratio: 16:9
  • Brightness: 400 nits (typical)
  • Viewing Angle: 178° (H/V)
  • Response Time: 6–8 ms

Touch Panel (Touch Model Only)

  • Touch Type: Capacitive / IR Multi-Touch
  • Touch Points: 10
  • Touch Accuracy: ±1mm
  • Touch Glass: 5mm Toughened Anti-Glare Glass
  • Touch Durability: 50 million touches

🧠 System Specifications

  • Operating System: Android 7.1 / 9.0 (Upgradable)
  • Processor: Quad-Core ARM Cortex
  • RAM: 1GB
  • Storage: 4GB
  • Wi-Fi: Supported
  • LAN Port: Optional
  • App Support: Compatible with Android applications for media playback and CMS control

🔊 Audio & Multimedia

  • Speakers: Built-in (2 × 10W)
  • Audio Output: 3.5mm / HDMI
  • Supported Media Formats: MP4, AVI, MKV, MP3, JPEG, PNG, PDF

🔌 Connectivity Ports

  • USB Ports: 2
  • HDMI Input: 1
  • VGA Port: 1
  • LAN Port: 1 (Optional)
  • Audio In/Out: Yes

🧱 Build & Design

  • Frame Material: MS Iron Frame
  • Front Glass: 5mm Toughened Glass
  • Design Type: Kiosk Freestanding Display
  • Color: Black (Customizable)
  • Mounting Type: Floor-Standing

⚙️ Power & Environment

  • Voltage: 100–240V AC, 50/60Hz
  • Power Consumption: ≤120W
  • Operating Temperature: 0°C – 45°C
  • Operating Humidity: 10% – 90% RH

📦 Package Includes

  • 1 × 43-Inch Digital Kiosk Signage
  • 1 × Power Cable
  • 1 × Remote Control
  • 1 × User Manual

🛡️ Warranty

  • 1 Year Manufacturer Warranty (against manufacturing defects)
.
