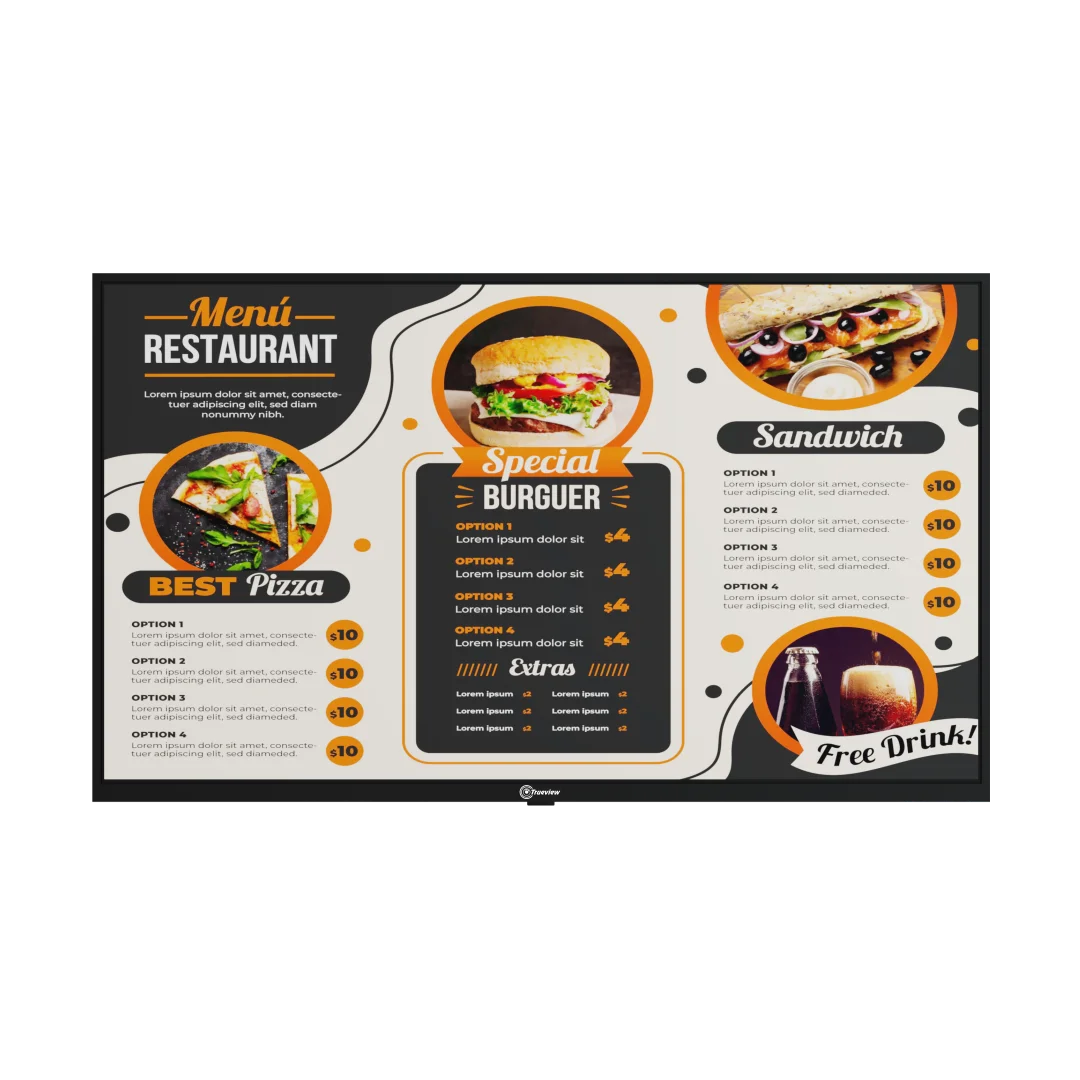

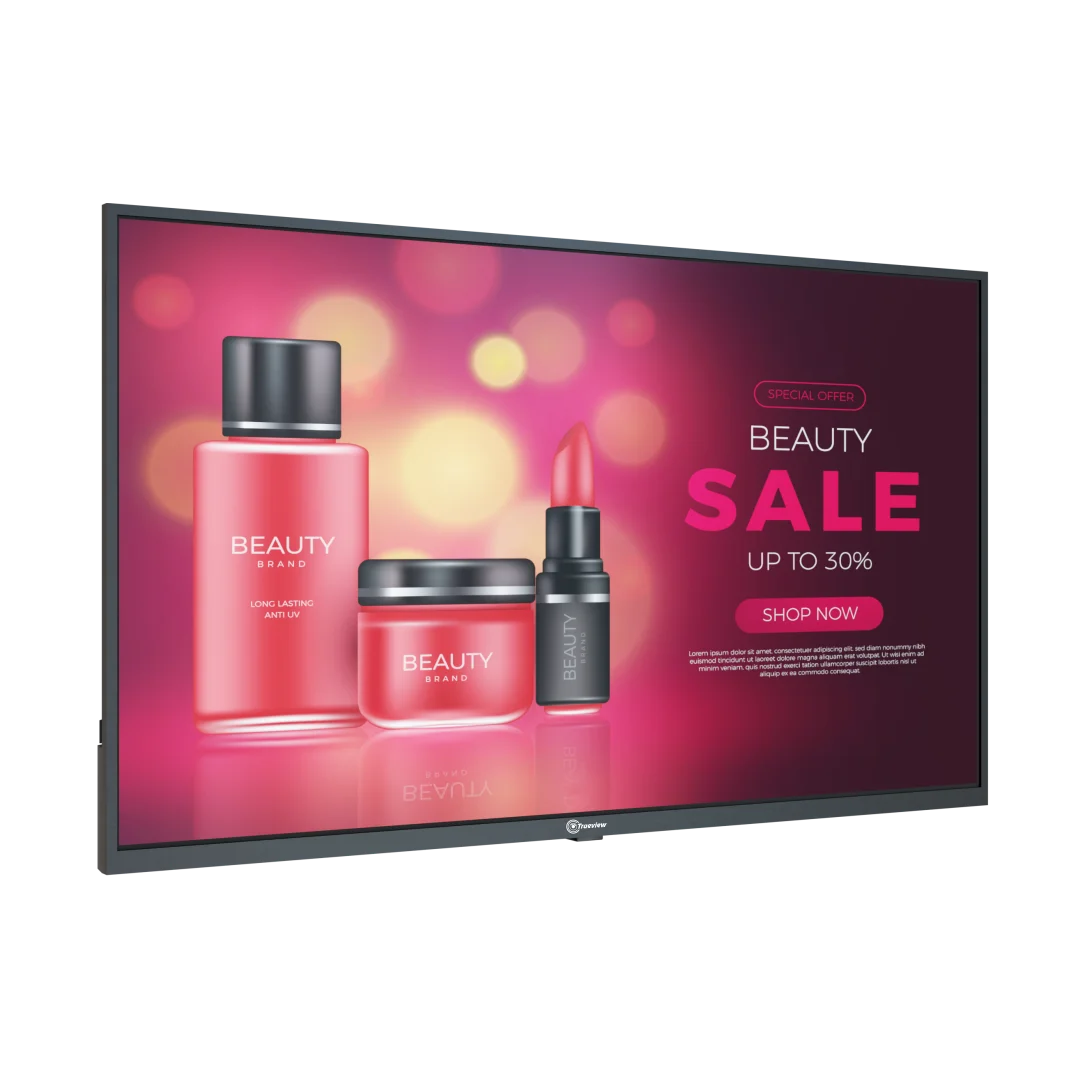

SBA011 32-Inch Wall Mount Digital Signage(Touch/Non-Touch)

The Suitch On SBA011 32-Inch Wall Mount Digital Signage is a premium display solution designed for impactful visual communication in retail environments, educational institutions, corporate spaces, and hospitality sectors.
Available in both Touch and Non-Touch variants, the SBA011 combines elegant design, durable construction, and superior display performance.

Equipped with a high-brightness LED panel, 10,000:1 contrast ratio, and 16:9 aspect ratio, it ensures crystal-clear image quality and vibrant colors. Its MS Iron frame and 5mm toughened glass provide strength, protection, and a modern aesthetic — ideal for continuous 24/7 operation in public or commercial settings.

With built-in stereo speakers, dual USB ports, and smart playback support, the SBA011 offers flexibility for both standalone media use and networked applications, making it a complete solution for digital advertising and information display.

⚙️ Technical Information

Model: SBA011
Brand: Suitch On
Product Type: Wall Mount Digital Signage (Touch / Non-Touch)

🖥️ Display Specifications

  • Display Size: 32 Inches
  • Display Type: LED Panel
  • Resolution: Full HD 1920 × 1080 (Optional 4K Upgrade)
  • Contrast Ratio: 10,000:1
  • Aspect Ratio: 16:9
  • Brightness: 350–400 nits
  • Viewing Angle: 178° (Horizontal / Vertical)

🧠 System Specifications

  • RAM: 1GB
  • Storage: 4GB
  • Processor: Quad-Core (for Android Version)
  • Operating System: Android / Plug & Play (Customizable)

🔊 Audio & Multimedia

  • Speaker: Yes (Built-in Stereo Speakers)
  • Supported Media Formats:
    • Video: MP4, AVI, MKV, MOV
    • Audio: MP3, WAV, AAC
    • Image: JPEG, PNG, BMP

🔌 Connectivity

  • USB Ports: 2
  • HDMI Port: 1 (Optional)
  • LAN / Wi-Fi: Optional (Smart Variant)
  • SD Card Slot: Optional

🧱 Build & Design

  • Frame Material: MS Iron (Durable and Rust-Resistant)
  • Front Glass: 5mm Toughened Glass

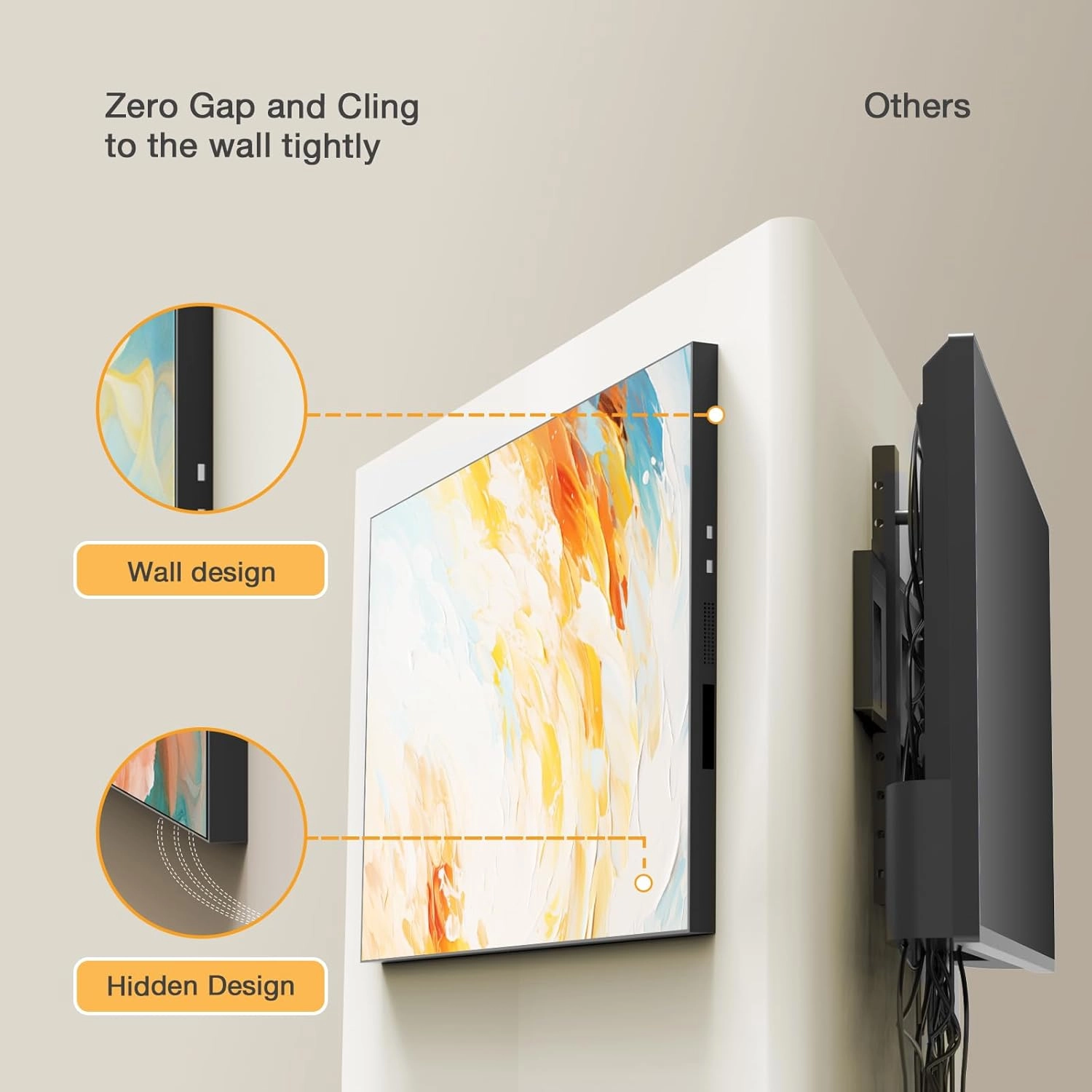

  • Mount Type: Wall Mount (Horizontal or Vertical Orientation)
  • Body Finish: Matte Black / Custom Color Available

⚙️ Power & Environmental

  • Input Voltage: 100–240V AC, 50/60Hz
  • Power Consumption: ≤ 60W
  • Operating Temperature: 0°C – 50°C
  • Humidity: 10% – 90% RH (Non-Condensing)

🧰 Touch (Optional)

  • Touch Type: Capacitive 10-Point Touch
  • Response Time: <10ms
  • Durability: Up to 50 Million Touches

📦 Package Includes

  • 1 × 32" Wall Mount Digital Signage Unit (SBA011)
  • 1 × Power Cable
  • 1 × Remote Control (for Non-Touch Version)
  • 1 × Wall Mount Bracket
  • 1 × User Manual

🛡️ Warranty

  • 1 Year Manufacturer Warranty (against manufacturing defects)
.
