⚙️ Technical Information

Model: SBA016
Brand: Suitch On

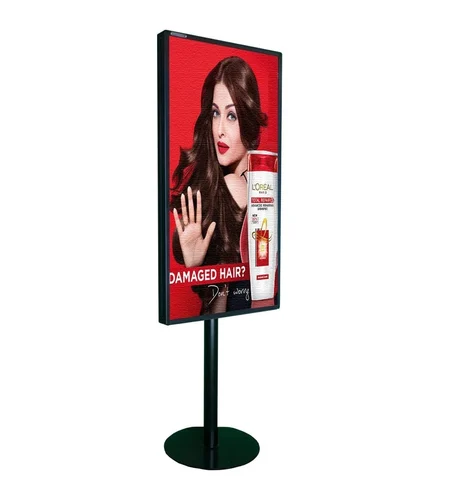

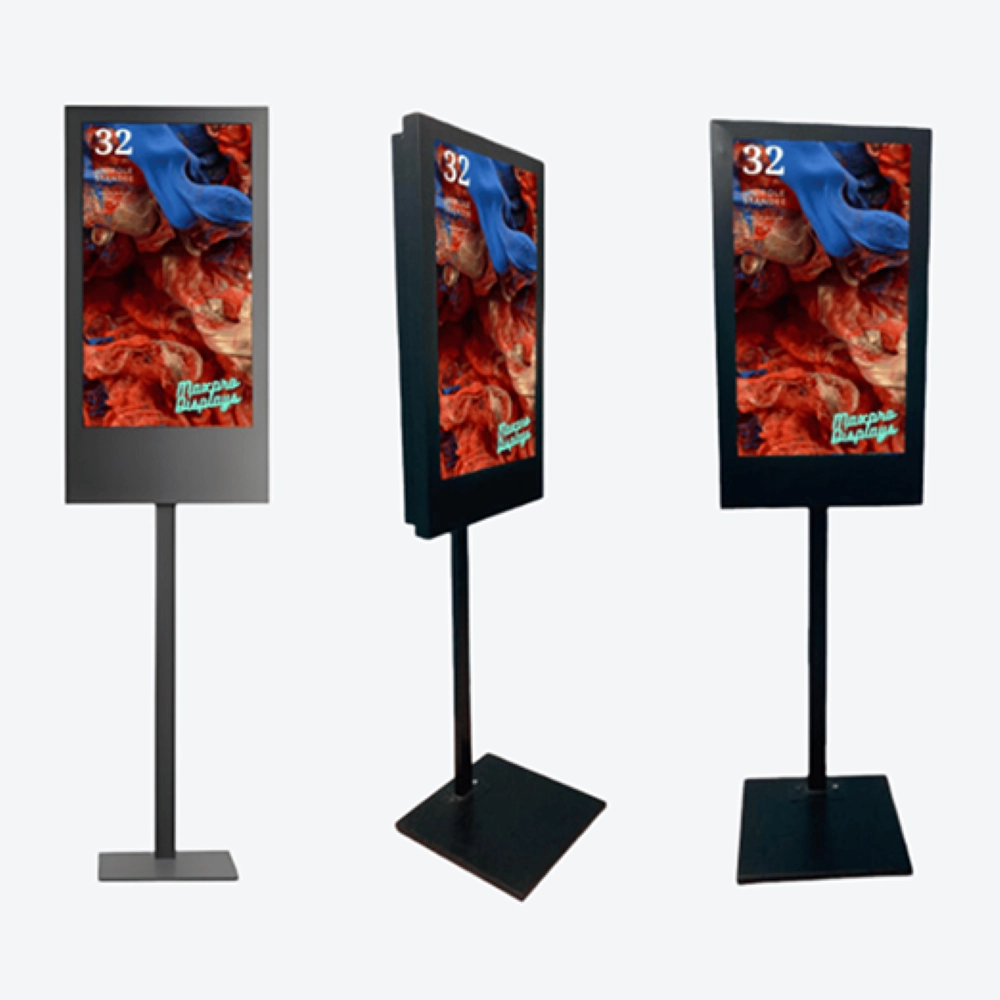

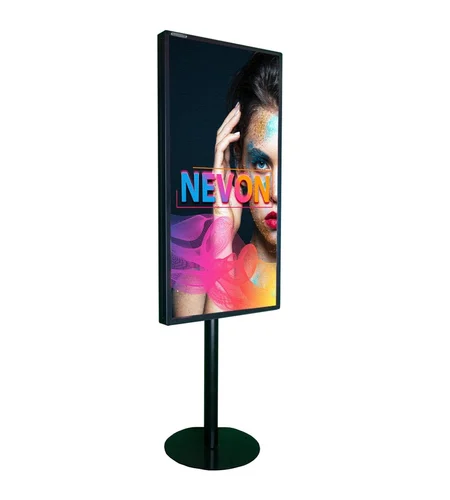

Product Type: Single Pole Digital Signage (Touch / Non-Touch)

🖥️ Display Specifications

• Display Size: 32 Inches
• Display Type: LED Panel
• Resolution: Full HD 1920 × 1080 (optional 4K upgrade)
• Aspect Ratio: 16:9
• Contrast Ratio: 10,000:1
• Brightness: 350–400 nits
• Viewing Angle: 178° (H/V)

🧠 System Specifications

• RAM: 1GB
• Storage: 4GB
• Processor: Quad-Core (for Android variant)
• Operating System: Android / Plug & Play

🔊 Audio & Multimedia

• Speaker: Yes (Built-in Stereo Speakers)
• Supported Formats:
  • Video: MP4, AVI, MOV, MKV
  • Audio: MP3, AAC, WAV
  • Image: JPEG, PNG, BMP

🔌 Connectivity

• USB Ports: 2
• HDMI Port: 1 (optional)
• LAN / Wi-Fi: Optional (Smart variant)
• SD Card Slot: Optional

🧱 Build & Design

• Frame Material: MS Iron (Powder-coated for durability)
• Front Glass: 5mm Toughened Glass
• Design: Single Pole Floor Stand Display
• Color Options: Matte Black / Custom colors on request

⚙️ Power & Environmental

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: ≤ 60W
• Operating Temperature: 0°C – 50°C
• Humidity: 10% – 90% RH (non-condensing)

🧰 Touch (Optional)

• Touch Type: Capacitive 10-point touch
• Response Time: <10ms
• Touch Durability: Up to 50 million touches

📦 Package Includes

• 1 × Digital Signage Display (SBA016)
• 1 × Power Cable
• 1 × Remote Control (for Non-Touch version)
• 1 × User Manual
• 1 × Installation Kit

🛡️ Warranty

• 1 Year Manufacturer Warranty (against manufacturing defects)
