⚙️ Technical Information

Model: SBA013
Brand: Suitch On

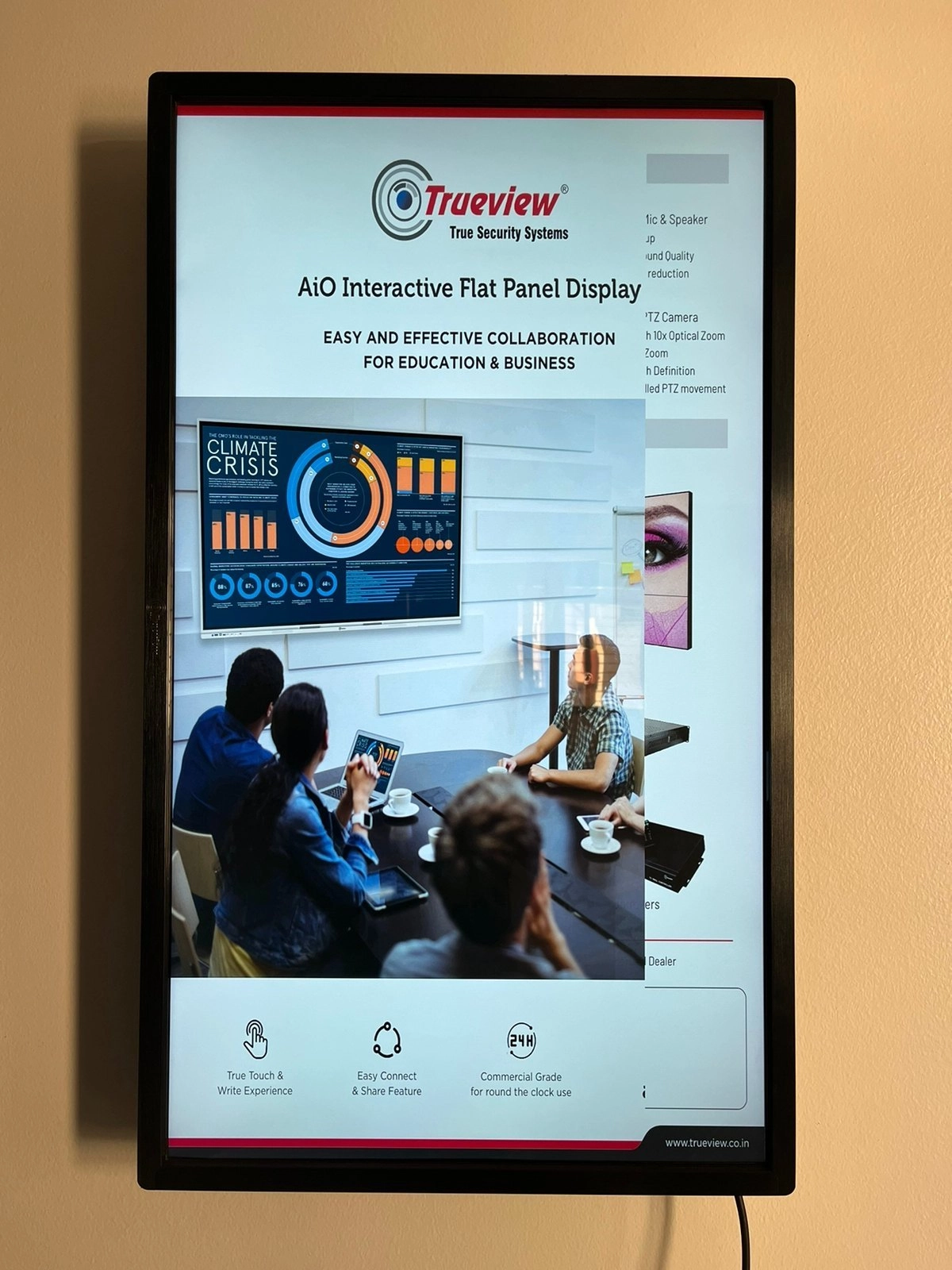

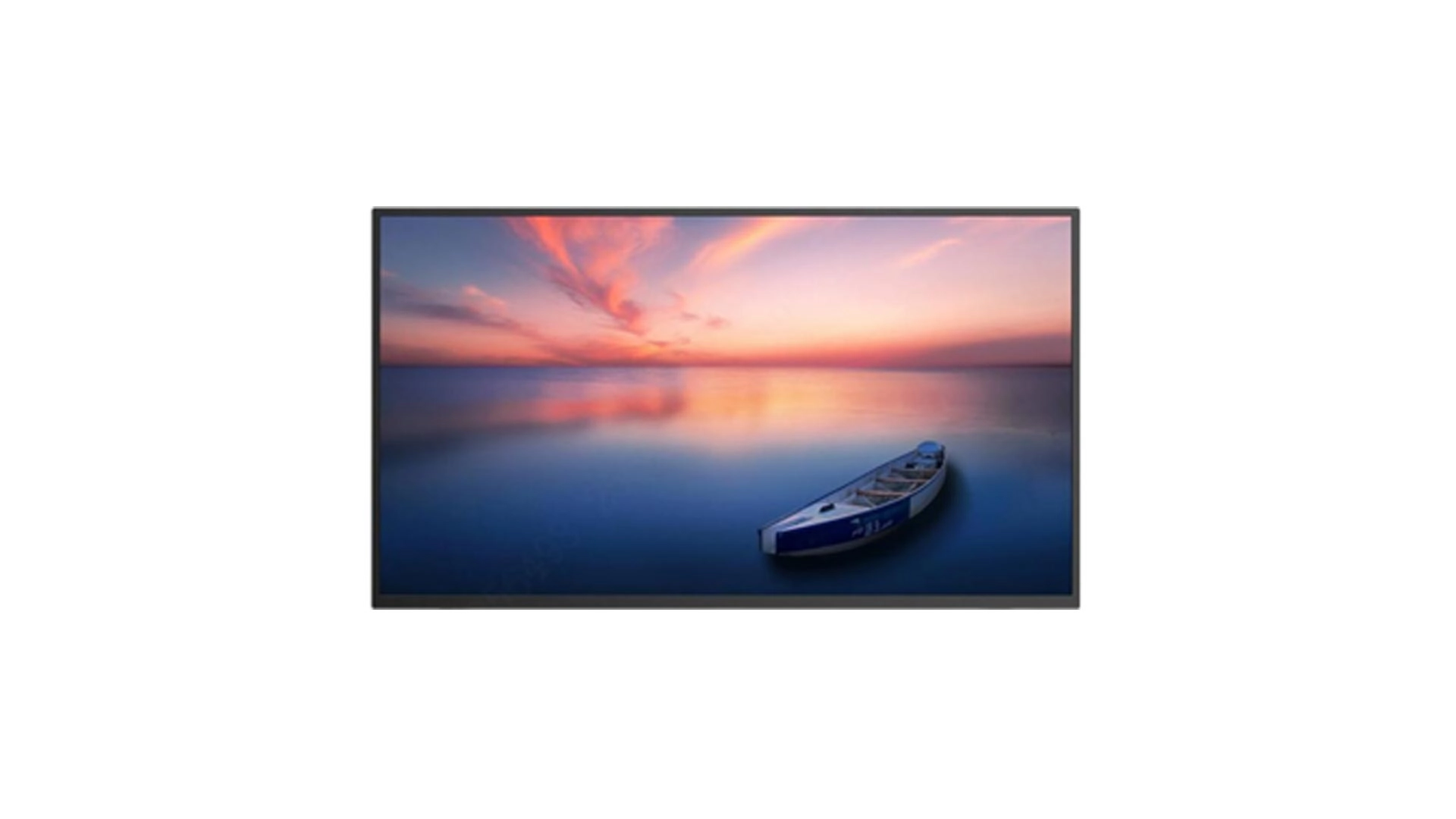

Product Type: Wall Mount Digital Signage (Touch / Non-Touch)

🖥️ Display Specifications

• Display Size: 50 Inches
• Display Type: LED Panel
• Resolution: Full HD 1920 × 1080 (Optional 4K Upgrade)
• Aspect Ratio: 16:9
• Contrast Ratio: 10,000:1
• Brightness: 400 nits (typical)
• Viewing Angle: 178° (Horizontal / Vertical)
• Response Time: 8ms

🧠 System Specifications

• RAM: 1GB
• Storage: 4GB
• Processor: Quad-Core CPU (for Android variant)
• Operating System: Android / Plug & Play (customizable)

🔊 Audio & Multimedia

• Speakers: Yes (Built-in Dual Stereo Speakers)
• Supported Video Formats: MP4, AVI, MKV, MOV
• Supported Image Formats: JPEG, PNG, BMP
• Supported Audio Formats: MP3, AAC, WAV

🔌 Connectivity

• USB Ports: 2
• HDMI Port: 1 (optional)
• LAN / Wi-Fi: Optional for smart variants
• SD Card Slot: Optional

🧱 Build & Design

• Frame Material: MS Iron (Powder-Coated Finish)
• Front Glass: 5mm Toughened Glass (Anti-Scratch, Anti-Glare)
• Mount Type: Wall Mount Design
• Body Color: Matte Black (Custom Color on Request)

⚙️ Power & Environmental

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: ≤ 80W
• Operating Temperature: 0°C – 50°C
• Humidity: 10% – 90% RH (Non-condensing)

🧰 Touch (Optional)

• Touch Type: Capacitive 10-Point Touch
• Response Time: <10ms
• Touch Life: 50 million touches

📦 Package Includes

• 1 × Suitch On SBA013 50-Inch Digital Signage
• 1 × Power Cable
• 1 × Remote Control (for Non-Touch Model)
• 1 × Wall Mount Bracket
• 1 × User Manual

🛡️ Warranty

• 1 Year Manufacturer Warranty (against manufacturing defects)
