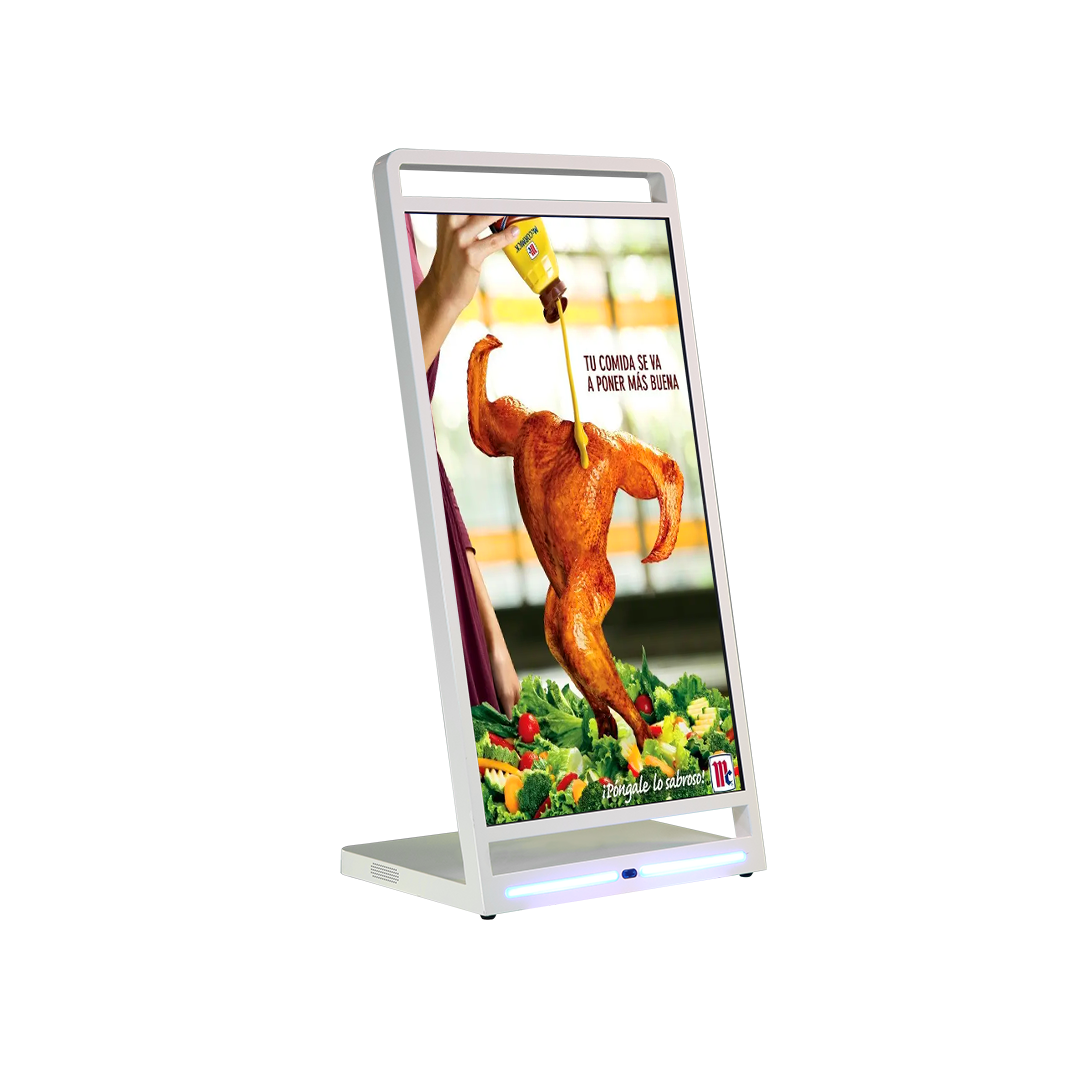

SBA024 32-Inch L-Type Digital Signage(Touch/Non-Touch)

The Suitch On SBA024 32-Inch L-Type Digital Signage is an elegant and modern digital display solution designed to enhance customer engagement and visual communication in retail, hospitality, and business environments. With its distinctive L-shaped structure, it combines functionality and style, providing both visual impact and practicality for branding, promotions, and informational displays.

Built with a premium MS Iron frame and 5mm toughened glass, the SBA024 ensures long-lasting durability and protection, even in high-traffic environments. The vivid LED panel delivers exceptional clarity and color contrast with a 10,000:1 contrast ratio and 16:9 aspect ratio, making every visual pop with brilliance.

Available in Touch and Non-Touch variants, this signage adapts perfectly to any digital application — from interactive kiosks to static advertisements. With 1GB RAM and 4GB storage, the system runs smoothly for multimedia playback, while built-in speakers enhance the overall viewing experience.

⚙️ Technical Information

Model: SBA024
Brand: Suitch On
Product Type: L-Type Digital Signage (Touch/Non-Touch)

🖥️ Display Specifications

  • Display Size: 32 Inches
  • Display Type: LED Backlit Display
  • Resolution: 1920 × 1080 (Full HD)
  • Contrast Ratio: 10,000:1
  • Aspect Ratio: 16:9
  • Brightness: 350–400 nits
  • Viewing Angle: 178° (H/V)
  • Response Time: 6–8 ms

Touch Panel (Touch Model Only)

  • Touch Type: Capacitive / Infrared Multi-Touch
  • Touch Points: 10
  • Glass: 5mm Toughened Anti-glare Glass
  • Touch Accuracy: ±1mm
  • Touch Life: 50 million touches

🧠 System Specifications

  • Operating System: Android 7.1 / 9.0 (Upgradable)
  • Processor: Quad-Core ARM Cortex
  • RAM: 1GB
  • Storage: 4GB
  • Wi-Fi: Supported
  • LAN Port: Optional

🔊 Audio & Multimedia

  • Speakers: Built-in (2 × 10W)
  • Audio Output: 3.5mm / HDMI
  • Supported Formats: MP4, AVI, MKV, MP3, JPEG, PNG, PDF

🔌 Connectivity Ports

  • USB Ports: 2
  • HDMI Input: 1
  • VGA Port: 1
  • LAN Port: 1 (Optional)
  • Audio In/Out: Yes

🧱 Build & Design

  • Frame Material: MS Iron Frame
  • Front Glass: 5mm Toughened Glass
  • Body Type: L-Type Design
  • Color: Black (Custom Options Available)
  • Mounting Type: Floor Standing or Wall-Mount Optional

⚙️ Power & Environment

  • Voltage: 100–240V AC, 50/60Hz
  • Power Consumption: ≤100W
  • Operating Temperature: 0°C – 45°C
  • Operating Humidity: 10% – 90% RH

📦 Package Includes

  • 1 × 32-Inch L-Type Digital Signage
  • 1 × Power Cable
  • 1 × Remote Control
  • 1 × User Manual

🛡️ Warranty

  • 1 Year Manufacturer Warranty (against manufacturing defects)
.
