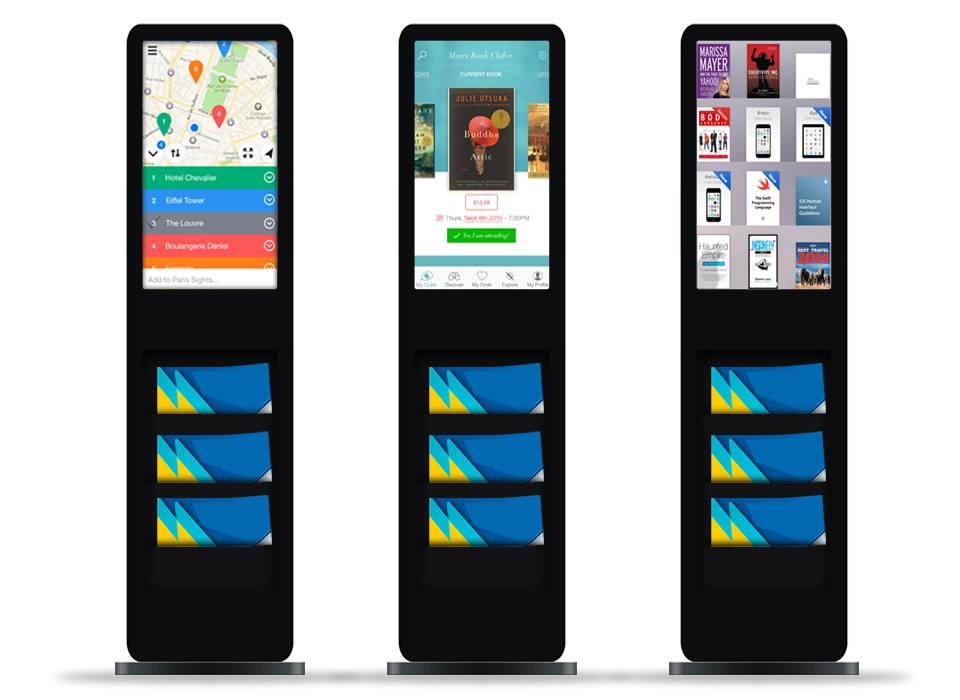

SBA023 32-Inch Magazine Digital Signage(Touch/Non-Touch)

The Suitch On SBA023 32-Inch Magazine Digital Signage is a compact yet powerful display solution designed for retail stores, showrooms, reception areas, and commercial spaces that need elegant and interactive digital presentation tools.

Its sleek magazine-style design, combined with a vivid LED panel and toughened glass, makes it a durable and attractive choice for modern interiors. Whether you choose the Touch or Non-Touch variant, it delivers an exceptional visual experience with a contrast ratio of 10,000:1 and a 16:9 aspect ratio for crystal-clear imagery.

Built with an MS Iron frame and powered by a 1GB RAM + 4GB storage Android system, the SBA023 ensures smooth content playback and easy operation — making it ideal for digital advertisements, promotions, or information displays in compact spaces.

⚙️ Technical Information

Model: SBA023
Brand: Suitch On
Product Type: Magazine-Style Digital Signage (Touch/Non-Touch)

🖥️ Display Specifications

  • Display Size: 32 Inches
  • Display Type: LED Backlit Panel
  • Resolution: 1920 × 1080 (Full HD)
  • Contrast Ratio: 10,000:1
  • Aspect Ratio: 16:9
  • Brightness: 350–400 nits
  • Viewing Angle: 178° (H/V)
  • Response Time: 6–8ms

Touch Technology (For Touch Model Only)

  • Touch Type: Capacitive / IR Multi-Touch
  • Touch Points: 10-point
  • Touch Accuracy: ±1mm
  • Touch Glass: 5mm Toughened Glass
  • Touch Life: 50 million touches

🧠 System Specifications

  • Operating System: Android 7.1 / 9.0 (Upgradable)
  • Processor: Quad-Core ARM Cortex
  • RAM: 1GB
  • Storage: 4GB
  • Wi-Fi: Supported
  • LAN Port: Optional

🔊 Audio & Multimedia

  • Speakers: Built-in (2 × 10W)
  • Audio Output: 3.5mm / HDMI
  • Supported Formats: MP4, AVI, MKV, JPEG, PNG, MP3, AAC

🔌 Connectivity Ports

  • USB Ports: 2
  • HDMI Input: 1
  • VGA Port: 1
  • LAN Port: 1 (Optional)
  • Audio In/Out: Yes

🧱 Build & Design

  • Frame Material: MS Iron Frame
  • Front Glass: 5mm Toughened Glass
  • Design Type: Magazine-Style Vertical Display
  • Color: Black / Custom Color Options
  • Mounting Type: Floor Standing or Wall-Mount Optional

⚙️ Power & Environment

  • Voltage: 100–240V AC, 50/60Hz
  • Power Consumption: ≤ 100W
  • Operating Temperature: 0°C – 45°C
  • Operating Humidity: 10% – 90% RH

📦 Package Includes

  • 1 × 32-Inch Magazine Digital Signage
  • 1 × Power Cable
  • 1 × Remote Control
  • 1 × User Manual

🛡️ Warranty

  • 1 Year Manufacturer Warranty (against manufacturing defects)
.
