SBA034 43-Inch Double Sided Digital Signage(Touch/Non-Touch)

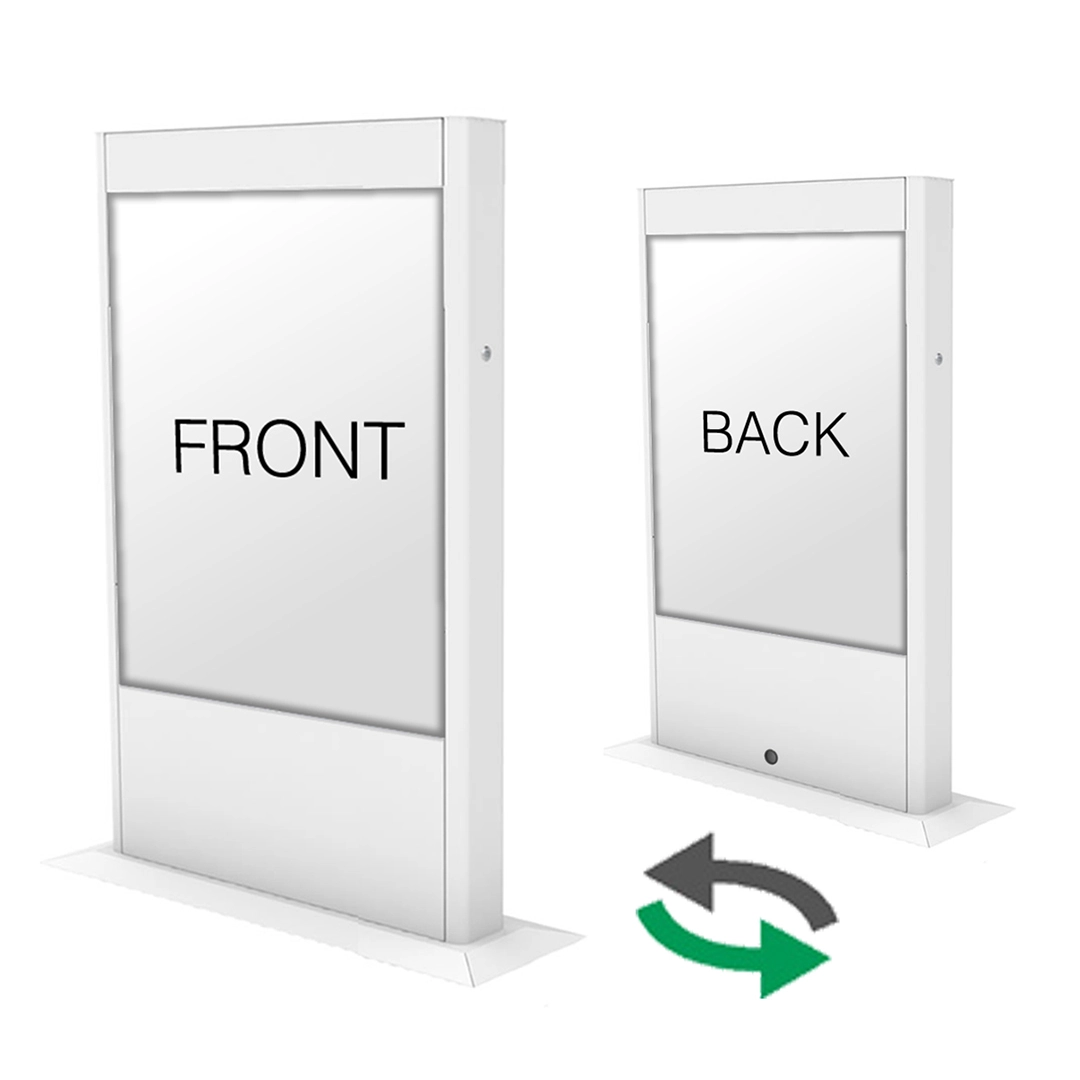

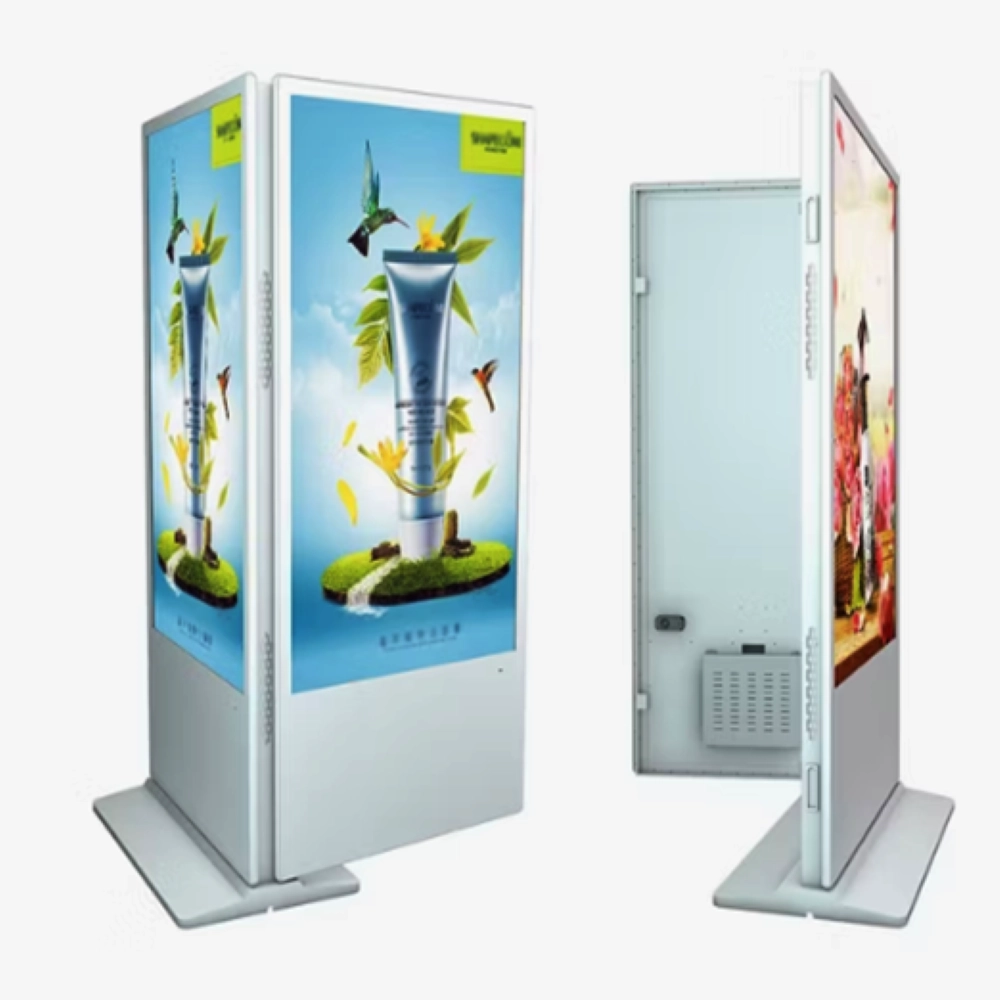

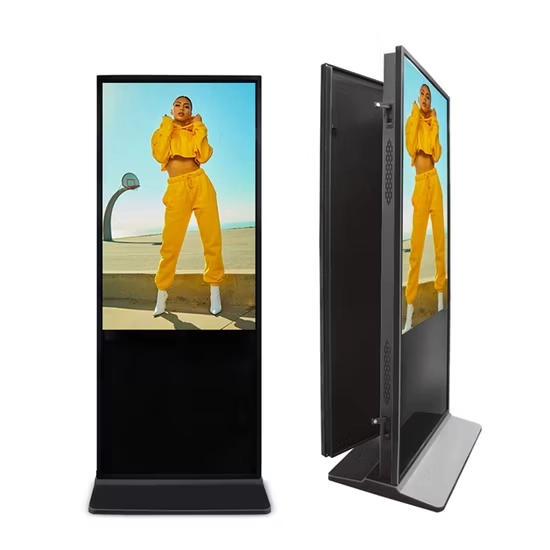

The Suitch On SBA034 43-Inch Double-Sided Digital Signage is a versatile and innovative display solution ideal for retail, corporate, hospitality, and public spaces. Its double-sided LED panel design allows content to be displayed on both sides, maximizing visibility and engagement in high-traffic areas.

Equipped with a Full HD LED panel, 10,000:1 contrast ratio, and 16:9 aspect ratio, the SBA034 delivers crisp, vibrant visuals that attract attention from multiple directions. The sturdy MS Iron frame and 5mm toughened glass ensure durability and long-term safety.

Available in Touch and Non-Touch variants, this signage operates on a 1GB RAM + 4GB storage Android system, providing smooth playback for multimedia content. Integrated speakers deliver clear audio, making the SBA034 an all-in-one solution for modern interactive digital signage needs.

⚙️ Technical Information

Model: SBA034
Brand: Suitch On
Product Type: Double-Sided Digital Signage (Touch/Non-Touch)

🖥️ Display Specifications

  • Display Size: 43 Inches
  • Display Type: LED Backlit Panel
  • Resolution: 1920 × 1080 (Full HD)
  • Contrast Ratio: 10,000:1
  • Aspect Ratio: 16:9
  • Brightness: 400 nits (typical)
  • Viewing Angle: 178° (H/V)
  • Response Time: 6–8 ms

Touch Panel (Touch Model Only)

  • Touch Type: Capacitive / IR Multi-Touch
  • Touch Points: 10
  • Touch Accuracy: ±1mm
  • Touch Glass: 5mm Toughened Anti-Glare Glass
  • Touch Durability: 50 million touches

🧠 System Specifications

  • Operating System: Android 7.1 / 9.0 (Upgradable)
  • Processor: Quad-Core ARM Cortex
  • RAM: 1GB
  • Storage: 4GB
  • Wi-Fi: Supported
  • LAN Port: Optional
  • App Support: Compatible with Android media and CMS applications

🔊 Audio & Multimedia

  • Speakers: Built-in (2 × 10W)
  • Audio Output: 3.5mm / HDMI
  • Supported Media Formats: MP4, AVI, MKV, MP3, JPEG, PNG, PDF

🔌 Connectivity Ports

  • USB Ports: 2
  • HDMI Input: 1
  • VGA Port: 1
  • LAN Port: 1 (Optional)
  • Audio In/Out: Yes

🧱 Build & Design

  • Frame Material: MS Iron Frame
  • Front Glass: 5mm Toughened Glass
  • Design Type: Double-Sided Freestanding Display
  • Color: Black (Customizable)
  • Mounting Type: Floor-Standing

⚙️ Power & Environment

  • Voltage: 100–240V AC, 50/60Hz
  • Power Consumption: ≤150W
  • Operating Temperature: 0°C – 45°C
  • Operating Humidity: 10% – 90% RH

📦 Package Includes

  • 1 × 43-Inch Double-Sided Digital Signage
  • 1 × Power Cable
  • 1 × Remote Control
  • 1 × User Manual

🛡️ Warranty

  • 1 Year Manufacturer Warranty (against manufacturing defects)
.
