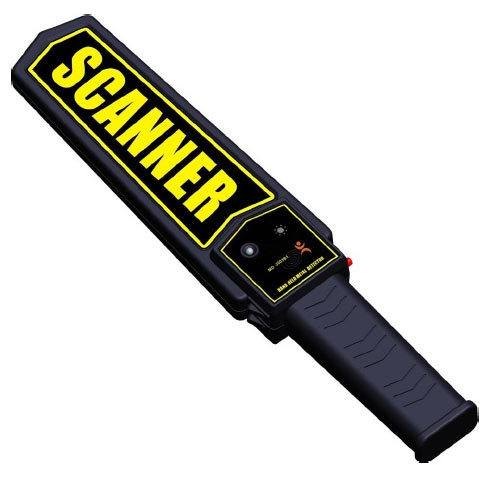

The Handheld Metal Detector (HHMD) is a compact, lightweight, and highly sensitive security device designed to detect concealed metallic objects on persons or in baggage. It is widely used at airports, railway stations, courts, schools, malls, corporate offices, hotels, and other high-security areas.
This detector provides reliable and fast scanning for both ferrous and non-ferrous metals, including weapons, knives, guns, and small metallic contraband. With ergonomic design, rechargeable battery, and adjustable sensitivity, it ensures convenient operation for long hours without fatigue.
Key Benefits:
| Parameter | Value |
|---|---|
| Detection Technology | Electromagnetic field induction |
| Detection Range | Pin-sized objects to large metallic weapons |
| Sensitivity Levels | Adjustable (low, medium, high) |
| Alarm Indication | Audio buzzer, red/green LED indicators, optional vibration alarm |
| Power Supply | 9V dry battery or built-in rechargeable Li-ion battery |
| Battery Backup | 40–60 hours (standard) |
| Charging Time | 4–6 hours |
| Operating Frequency | 20–50 kHz |
| Operating Temperature | –10 °C to +50 °C |
| Body Material | ABS plastic (impact-resistant and lightweight) |
| Dimensions | Approx. 410 × 85 × 45 mm |
| Weight | ~400–500 g |
| Certifications | CE, ISO, RoHS, IEC compliant |
| Optional Features | Silent vibration mode for discreet operations |
