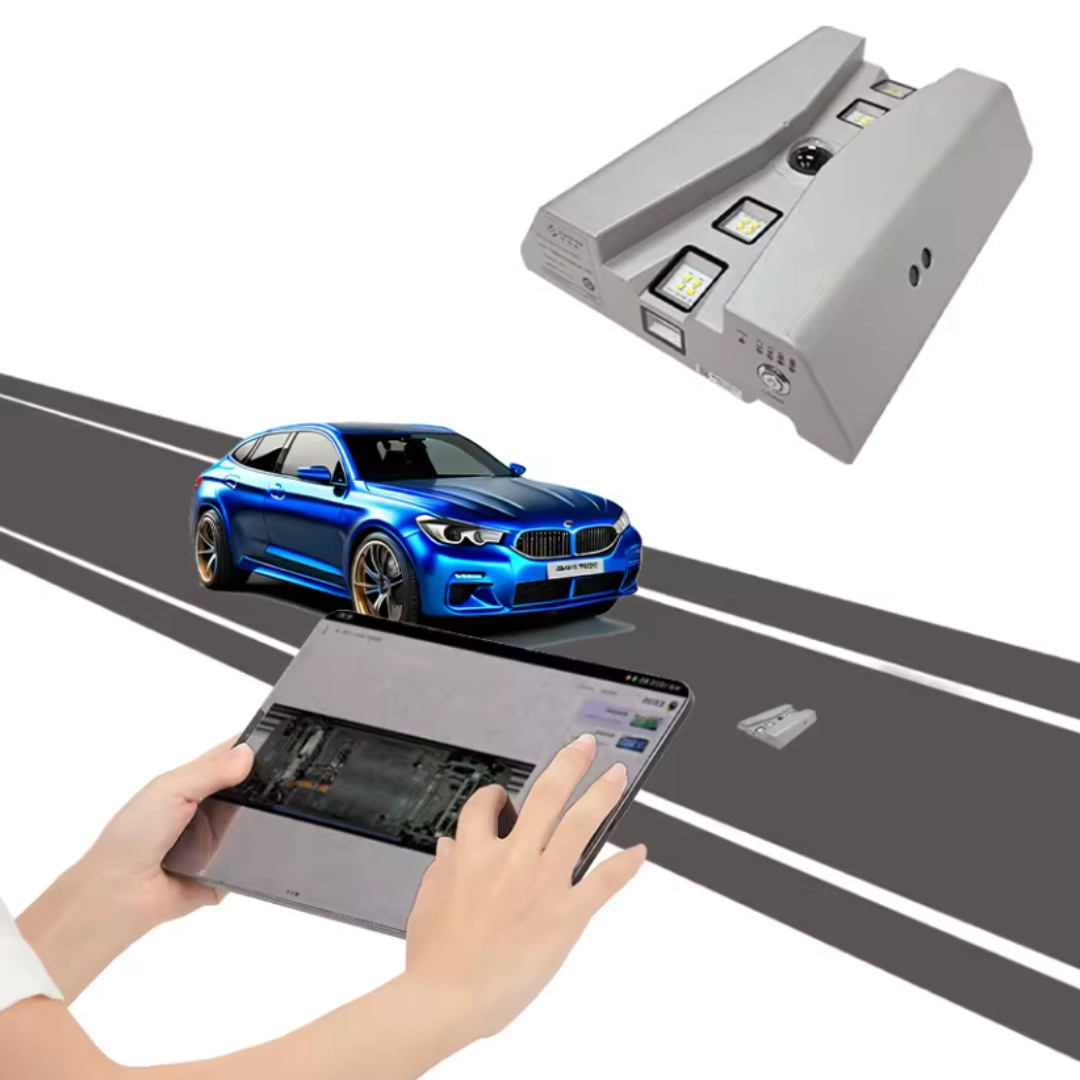

A Car Metal Detector, also known as an Under Vehicle Metal Detector (UVMD) or Under Vehicle Surveillance System (UVSS), is an advanced security device designed to detect metallic threats and contraband attached to or hidden under vehicles. It is commonly installed at the entrances of high-security premises such as airports, military bases, government offices, hotels, and industrial complexes.

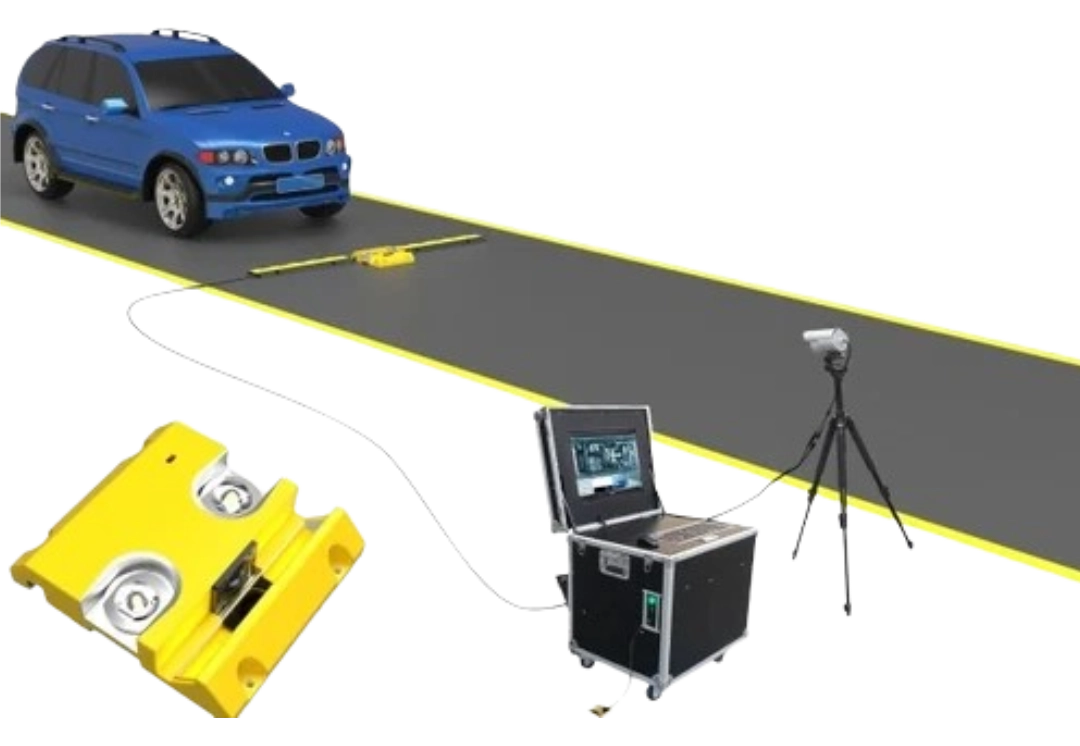

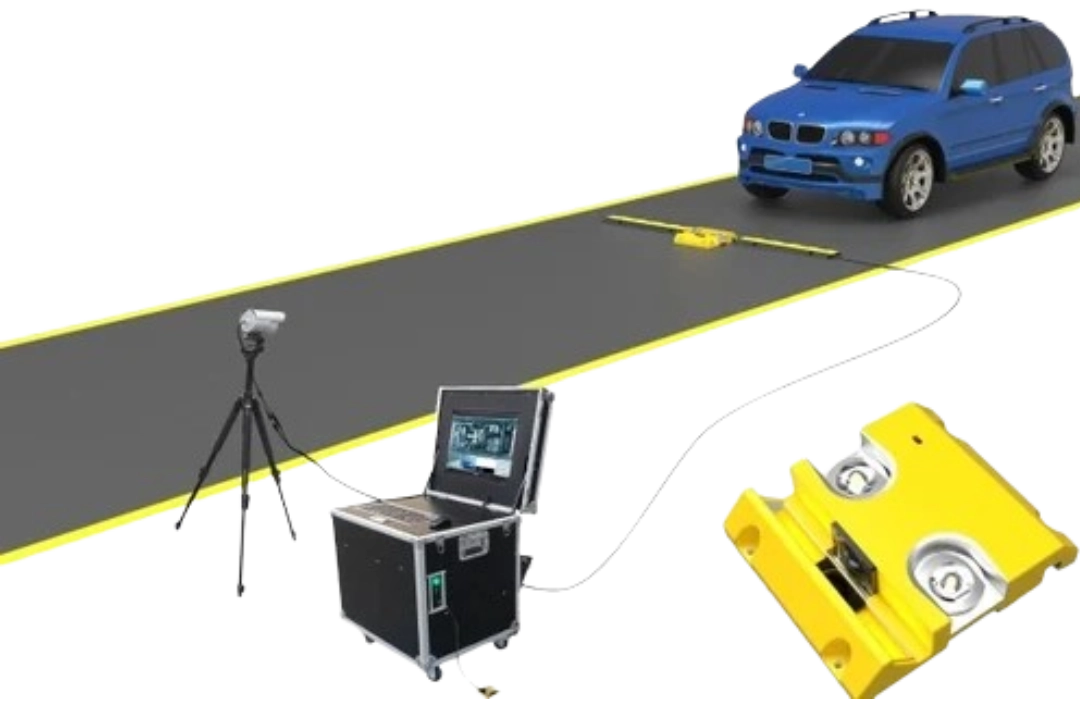

The system scans the underside of vehicles for hidden metallic objects such as weapons, explosives, or smuggling materials. With high-sensitivity sensors, rugged design, and fast scanning capability, it ensures effective security screening without interrupting vehicle movement.
Key Benefits:
| Parameter | Value |
|---|---|
| Detection Technology | High-sensitivity electromagnetic induction / pulse induction sensors |
| Detection Range | Small to large metallic objects (e.g., knives, guns, bombs, contraband) |
| Detection Depth | 0 – 400 mm (depending on object size and ground clearance) |
| Alarm Indication | Audio alarm, visual LED indicators, optional display console |
| Sensitivity Adjustment | Multi-level sensitivity settings (low to ultra-high) |
| Power Supply | 220–240 V AC / 110 V AC; optional 12–24 V DC battery backup |
| Working Frequency | 6–10 kHz (varies by model) |
| Operating Temperature | –20 °C to +55 °C |
| Installation Method | Embedded in the road surface / portable handheld version available |
| Housing Material | Heavy-duty stainless steel / weatherproof ABS casing |
| Ingress Protection (IP Rating) | IP65 / IP67 for outdoor weather resistance |
| Alarm Output | Relay output for integration with boom barriers, gates, or alarms |
| Control Interface | Local control unit or PC-based monitoring system |
| Dimensions (Ground Sensor Unit) | Typical: 500 × 500 × 100 mm (varies by model) |
| Weight | ~15–30 kg per ground sensor |
| Certifications | CE, ISO9001, RoHS, IEC safety compliance |
