?? Technical Information

Model: SL005 Series 1Pro
Brand: Suitch On
Material: Premium Zinc Alloy
Finish Options: Matte Black / Silver

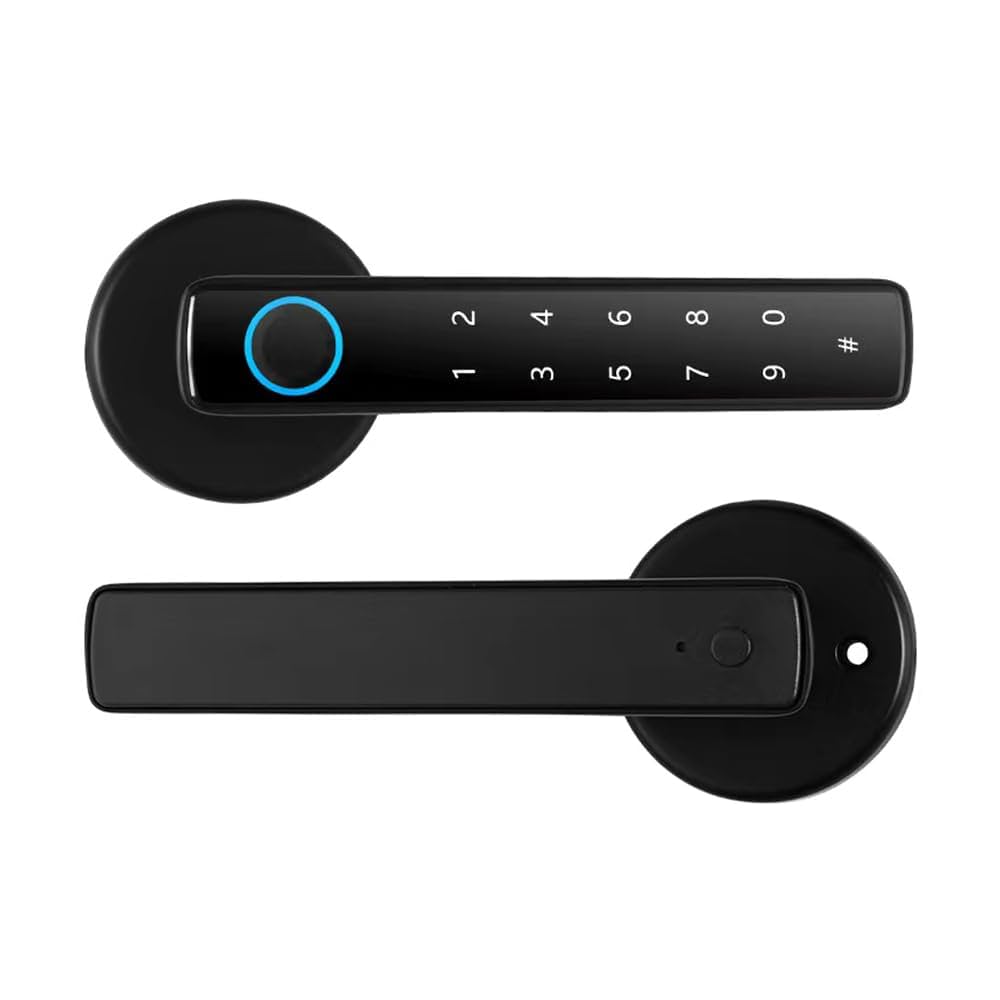

Lock Type: Zigbee Smart Handle Door Lock (Mortise Type)
Connectivity: Zigbee + Bluetooth

?? Unlocking Methods

1. Fingerprint Recognition (Capacitive sensor ? <0.5s recognition)
2. RFID Card Access (13.56 MHz)
3. PIN / Passcode Entry (6?12 digits, with anti-peep function)
4. Mechanical Key (for emergency access)
5. Mobile App Control (via Zigbee or Bluetooth through Suitch Smart App)
6. OTP (One-Time Password) ? temporary code for guest or delivery access

?? Smart App & Zigbee Features

• Add, delete, and manage users remotely
• View access logs in real-time
• Generate temporary or time-based OTPs
• Integrate with Zigbee smart home hubs (Alexa, Google Home via gateway)
• Remote unlock and access sharing
• Receive push notifications and alerts

?? Power & Battery

• Power Source: 4 ? AA Alkaline Batteries (DC 6V)
• Battery Life: Up to 12 months (approx. 10,000 unlocks)
• Low Battery Alert: LED + App notification
• Emergency Power Supply: Type-C / Micro USB Port

?? Specifications

• Fingerprint Capacity: Up to 200 users
• Passcode Capacity: 100 sets
• RFID Capacity: 200 cards
• Door Thickness Supported: 35mm ? 65mm
• Working Temperature: -20?C to 60?C
• Working Humidity: 10% ? 90% RH
• Door Orientation: Left & Right reversible
• Installation: Suitable for wooden, metal, and security doors

?? Security Features

• Anti-peep password entry
• Auto-locking after closure
• Tamper & intrusion alarm
• Wrong entry lockout protection
• One-time password (OTP) access for visitors
• Mechanical key override for emergency use

?? Package Includes

• 1 ? Suitch SL005 Series 1Pro Smart Lock
• 2 ? RFID Smart Cards
• 2 ? Mechanical Keys
• 1 ? Installation Kit with Screws
• 1 ? User Manual

??? Warranty

• 1 Year Manufacturer Warranty (against manufacturing defects)
