12 module smart touch switch 8 switch 2 socket (1-16Amp |1-2way)

The Suitch On 12 Module Smart Touch Switch (8 Switch + 2 Socket) from Suitch On Innovation is a premium smart switch panel designed for modern homes, offices, hotels, and automation-ready spaces.

Equipped with Capacitive Sense technology, this panel supports 1 million touch cycles, providing reliable, long-lasting performance. It features eight independent smart touch switches for controlling lights and appliances, along with two power sockets, including a 16A high-power socket for devices like air conditioners and water geysers.

The panel supports a wide variety of lighting and resistive loads, including CFL, LED, tube lights, and wired incandescent lights, with each switch handling up to 6A. Built with premium fire-retardant materials and a toughened glass panel, this 12-module smart switch combines safety, elegance, and modern design in one unit.

⚙️ Technical Information

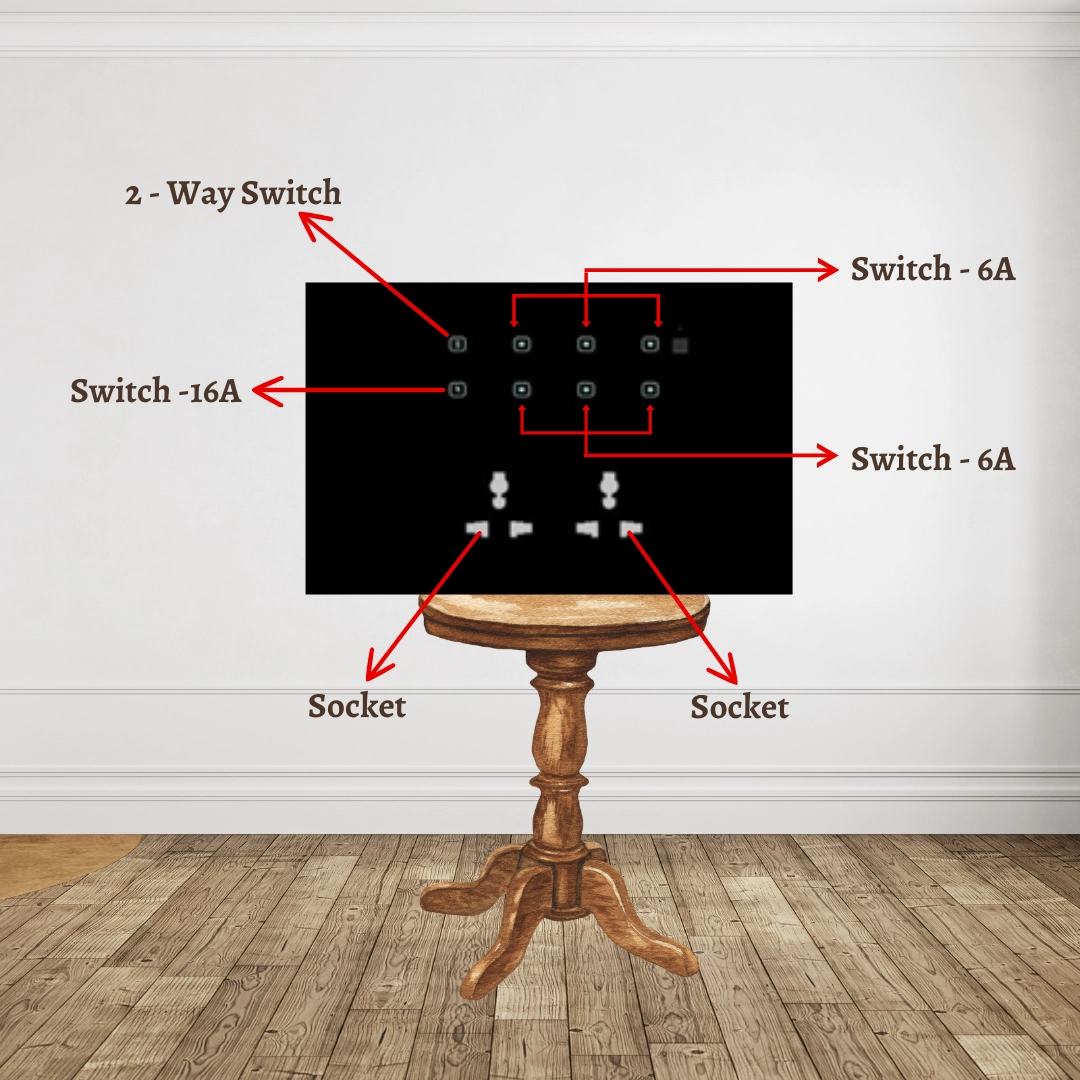

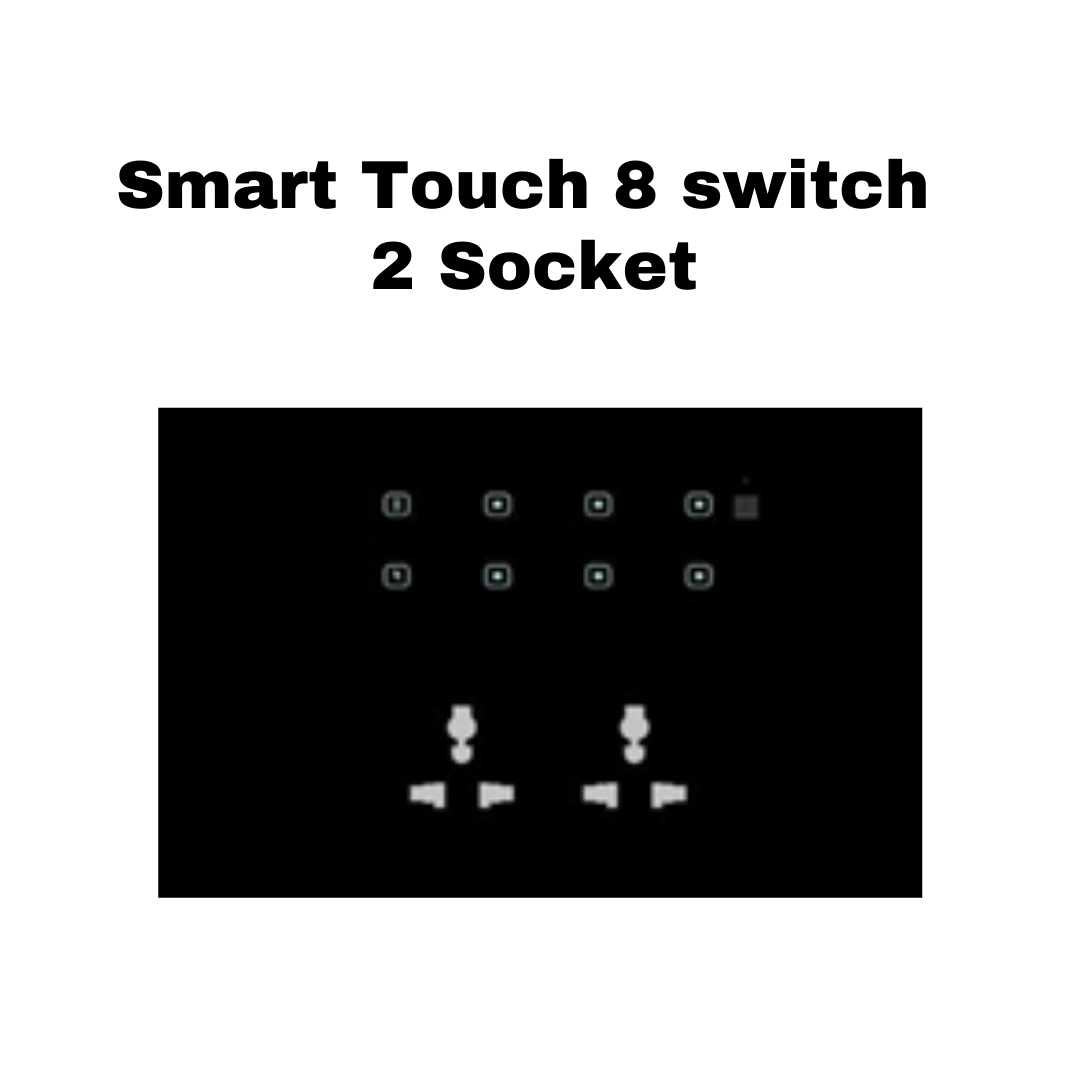

Model: 12 Module Smart Touch Switch (8 Switch + 2 Socket)
Brand: Suitch On Innovation
Category: Smart Touch Modular Switch

Electrical Specifications

  • Operating Voltage: 230 V AC
  • Technology: Cap Sense Touch (1 Million Touch Life)
  • Maximum Load per Switch: 6 A
  • Sockets: 2 (One 6A + One 16A for high-power appliances)
  • Switch Count: 8
  • 2-Way Operation: Supported
  • Load Type: CFL, LED Light, Tube Light, Resistive Load, Wired Incandescent

🌡️ Operating Environment

  • Temperature Range: 0°C – 45°C
  • Humidity Range: 5% – 90% RH

💡 Supported Load Types

  • Lighting Loads: CFL, LED, Tube Light, Wired Incandescent, Resistive Loads
  • High-Power Loads: Air Conditioner, Water Geyser (up to 16A)

🧱 Build & Design

  • Module Type: 12 Module
  • Material: MS Iron Frame + Toughened Glass Panel
  • Finish: Glossy / Matte Finish
  • Mounting Type: Modular Wall Box Compatible
  • LED Indicators: Yes

⚙️ Safety & Compliance

  • Touch Durability: 1 Million Operations
  • Fire-Retardant Build: Yes
  • Overload Protection: Yes
  • Standards Compliance: IS/IEC Certified

📦 Package Includes

  • 1 × 12 Module Smart Touch Switch (8 Switch + 2 Socket)
  • 1 × Installation Manual
  • Mounting Accessories

🛡️ Warranty

  • 1-Year Manufacturer Warranty
.
