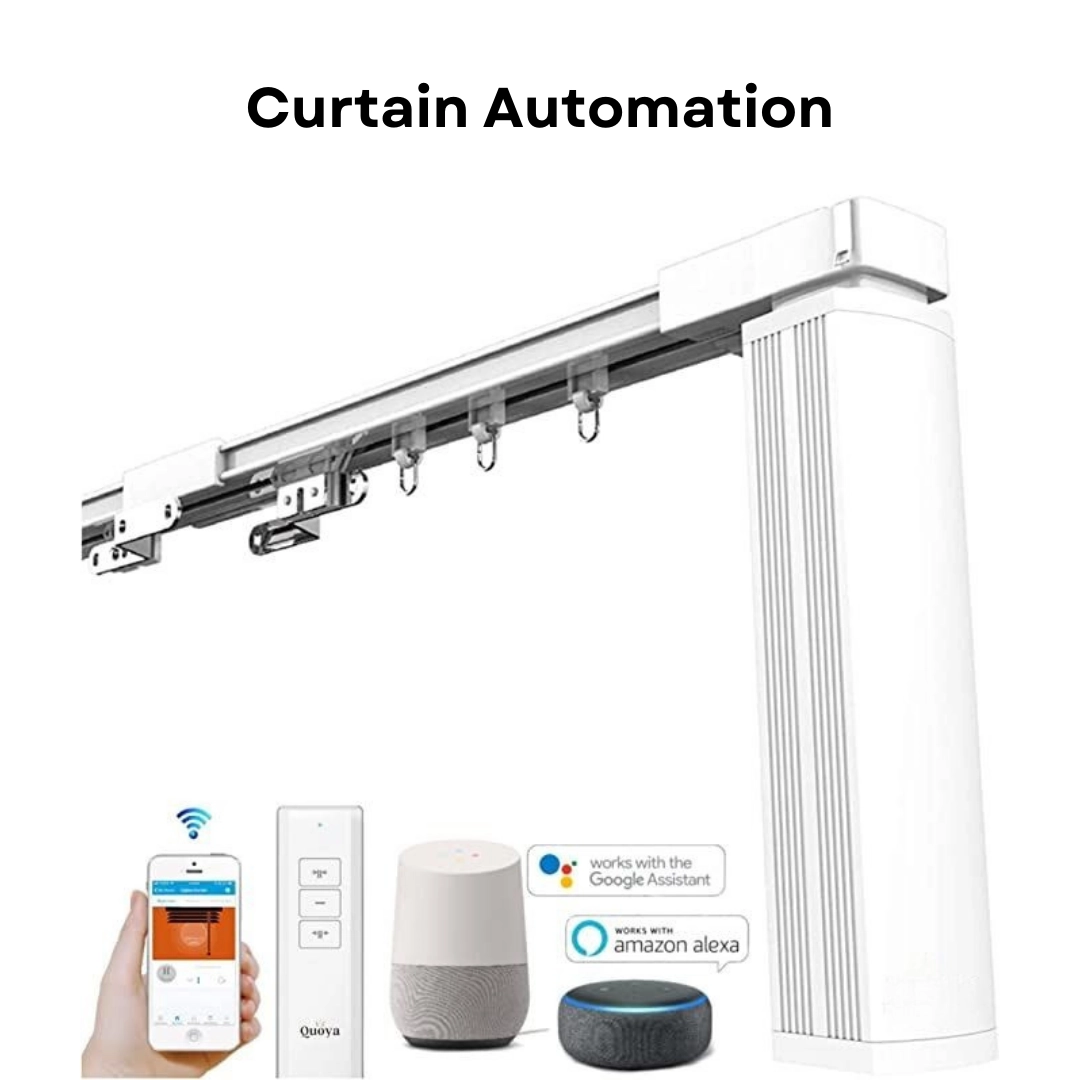

Curtain Motor 2.5 nm ( wifi/without wifi )

The Suitch On Curtain Motor 2.5 Nm by Suitch On Innovation is an advanced smart automation solution designed to make your curtains intelligent, elegant, and effortless to operate. Engineered with precision, this motor offers smooth and silent performance, ideal for modern homes, hotels, offices, and conference rooms.

Available in Wi-Fi and Non-Wi-Fi variants, it allows users to choose between manual remote control operation and smart home integration via mobile app or voice assistants like Alexa and Google Home.

With a torque capacity of 2.5 Nm, this curtain motor effortlessly handles both light and medium-weight curtains, ensuring consistent performance and long-lasting durability. The quiet motor technology and soft start/stop function enhance user comfort and prolong the life of your curtains.

Crafted using premium materials, the motor supports multiple control options, including remote control, wall switch, app control, and timer automation (Wi-Fi version). It’s designed to integrate seamlessly with existing smart home ecosystems, offering full convenience and control.

⚙️ Technical Information

Model: Curtain Motor 2.5 Nm (Wi-Fi / Without Wi-Fi)
Brand: Suitch On Innovation
Category: Smart Curtain Automation

Electrical Specifications

  • Operating Voltage: 230 V AC
  • Power Consumption: < 45W
  • Torque Output: 2.5 Nm
  • Motor Type: AC Tubular Motor
  • Speed: 100 – 140 RPM
  • Frequency: 50 Hz
  • Rated Current: ≤ 0.5 A
  • Control Type: Remote / Wi-Fi / Manual (Depending on Variant)
  • Load Type: Compatible with Light & Medium Fabric Curtains

🌡️ Operating Environment

  • Temperature Range: -10°C to 50°C
  • Humidity Range: 5% – 90% RH
  • Noise Level: < 35 dB (Silent Operation)

🔗 Control Options

  • Wi-Fi Variant:
    • Mobile App Control (iOS & Android)
    • Voice Control via Alexa / Google Assistant
    • Timer & Scheduling Support
    • Scene & Group Control
  • Non-Wi-Fi Variant:
    • Remote Control / Wall Switch Operation
    • Soft Start and Stop Function
    • Manual Pull Start Feature

⚙️ Build & Design

  • Motor Body Material: Aluminium Alloy
  • Mount Type: Ceiling / Wall Compatible
  • Color: White / Silver

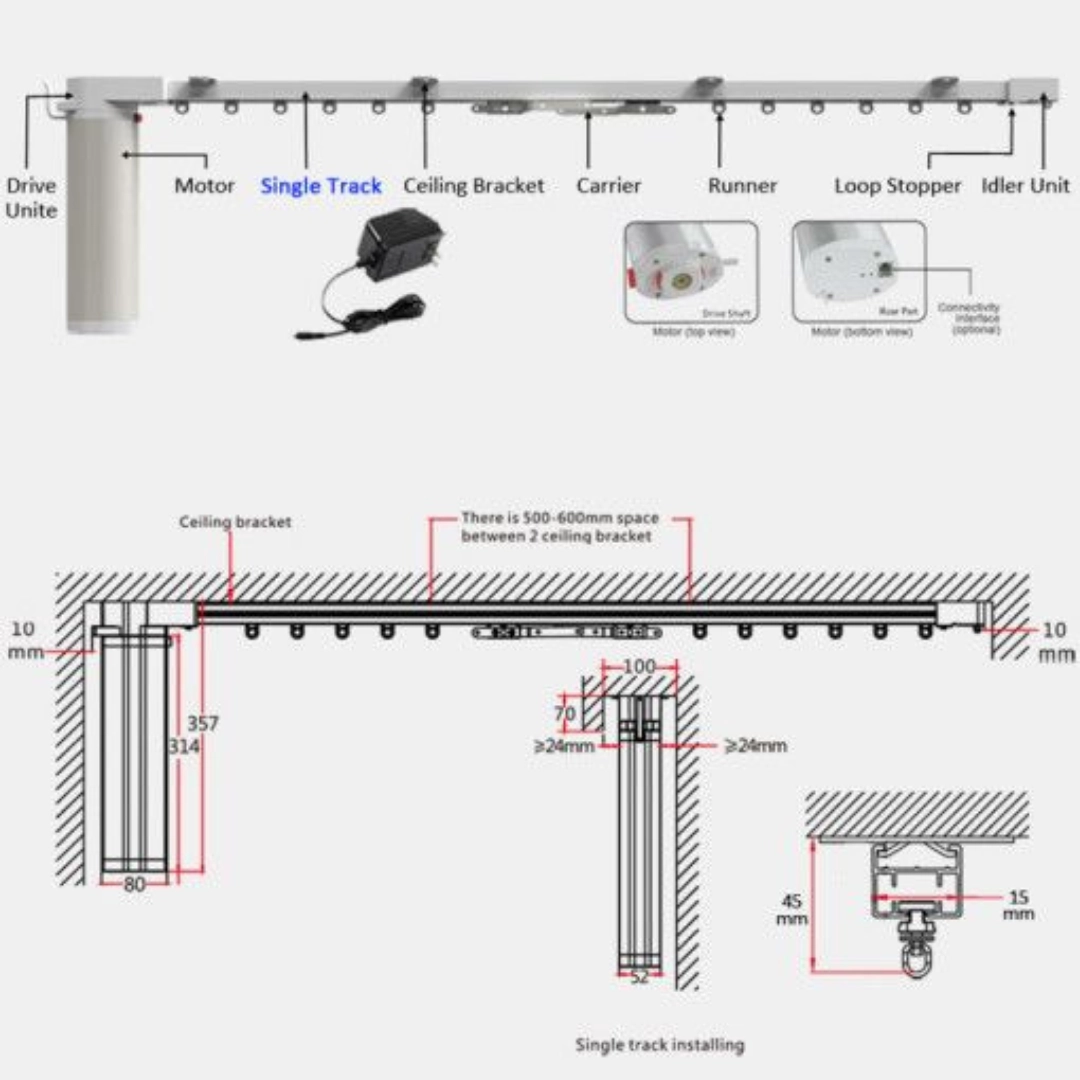

  • Curtain Compatibility: Straight & Curved Track Curtains
  • Max Curtain Weight: Up to 50 kg (varies by track length)

🧱 Safety & Protection

  • Overheat Protection: Yes
  • Overload Protection: Yes
  • Silent Drive Technology: Yes
  • Certification: CE, RoHS, IS Compliant

📦 Package Includes

  • 1 × Curtain Motor (Wi-Fi or Non-Wi-Fi as selected)
  • 1 × Remote Control (For both variants)
  • 1 × Mounting Bracket Set
  • 1 × User Manual

🛡️ Warranty

  • 1-Year Manufacturer Warranty by Suitch On Innovation
.

Frequently asked question

1. What is the torque capacity of this curtain motor?

The motor features a torque capacity of 2.5 Nm, which allows it to handle light to medium-weight curtains with ease.

2. Are there different connectivity options available?

Yes, the motor is available in both Wi-Fi and Non-Wi-Fi variants to suit different automation needs.

3. What control methods can be used with this motor?

Depending on the variant you choose, you can operate the curtains using:

  • Manual remote control
  • Wall switch
  • Mobile application (Wi-Fi version)
  • Voice assistants like Alexa and Google Home (Wi-Fi version)
  • Timer automation (Wi-Fi version)
